Parker Hannifin

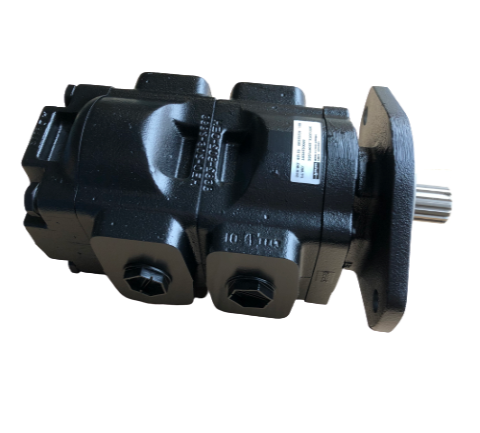

20/907600 Genuine Parker / JCB 3CX Twin Hydraulic Pump 41 + 26 CC/REV

20/907600 Genuine Parker / JCB 3CX Twin Hydraulic Pump 41 + 26 CC/REV

25 w magazynie

Cena regularna 3.617,52 zł PLN
Cena regularna Cena promocyjna 3.617,52 zł PLN
W promocji Wyprzedane
Z wliczonym podatkiem.

PRICE EXCL. VAT

Looking for a pump to fit a specific machine? Click here. Alternatively, enter your machine number or OEM part number into the search bar above.
  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.
Key Information
  • Rotation: Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
  • SAE B 2 hole mounting flange
  • Front pump displacement: 41 cc/rev (41L/Min per 1000 rpm)
  • Rear pump displacement: 26 cc/rev (26L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 7/8”-14 UNF threaded
  • Maximum working pressure on front pump: 250 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

  • 20/907600 - 7029120007

Weight

  • 26KG

Machine Fitment

JCB414S
