20/925340 Genuine Parker / JCB 3CX Twin Hydraulic Pump 41 + 26 CC/REV - Unwin Hydraulic Engineering
Parker Hannifin

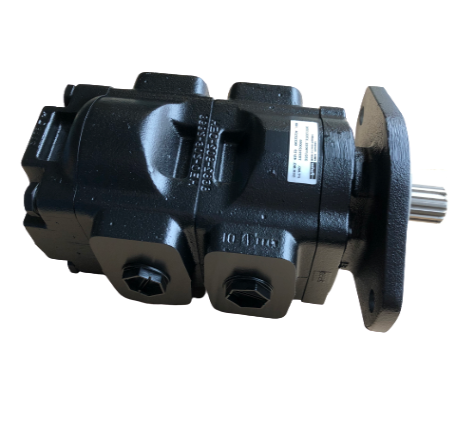

20/925340 Genuine Parker / JCB 3CX Twin Hydraulic Pump 7029121119

€1.419,58 ex VAT €1.419,58 inc VAT€1.419,58 inc VAT €1.419,58 ex VAT

Only 4 left in stock

Collection from our Derbyshire HQ by arrangement

Need 10+ or a bulk price? Request a quote

Delivery price

Live courier prices — the same as you'll see at checkout.

  • Order by 1pm for same-day dispatch (subject to stock availability)
  • Up to 50% saving against OEM parts
  • Technical support from our hydraulic engineers
Not sure it's the right part?

Our engineers will check it fits before you order.

01283 817 920
Key Information
  • Rotation: Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
  • SAE B 2 hole mounting flange
  • Front pump displacement: 41 cc/rev (41L/Min per 1000 rpm)
  • Rear pump displacement: 26 cc/rev (26L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 7/8”-14 UNF threaded
  • Maximum working pressure on front pump: 250 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

  • 20/925340 - 7029120005

Weight

  • 26KG

Machine Fitment

  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4C-4WS PC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 4CXSM444 Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CX SUPER P/S Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 4CX444 SUPER Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CX P/S Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 4CXSM444 SUPER Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 3CXCSM4TPC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 3CX4WSSMPC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4CXS-4WSPC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CXSM P/S Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 4CX444 Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4CX444 Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913  Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CX Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 3CXSM444 SUPER Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CXSM Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 3CXSM 4TPC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CX MANUAL Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 3CXSM-4 Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4CN444 SUPER Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4C Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4C444 SUPER Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CX CONTRACTOR Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CX SUPER Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4CX4WSSMPC Precision Control (Servo)- Sideshift 9802/9830 PUMP, MAIN HYDRAULIC 41/26CCR M953913 4CXS4WSSMPC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 3CXC-4T PC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CX SUPER MAN Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CXSM MANUAL Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 3CX-4T PC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4CX-4WS PC Precision Control (Servo)- Sideshift 9802/9830
