Parker Hannifin

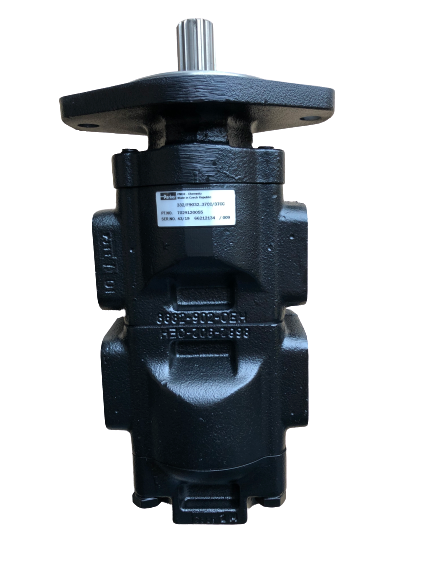

20/925586 Genuine Parker / JCB 3CX Twin Hydraulic Pump 29 + 23 CC/REV
20/925586 Genuine Parker / JCB 3CX Twin Hydraulic Pump 29 + 23 CC/REV
52 w magazynie
Cena regularna
2.595,02 zł PLN
Cena regularna
Cena promocyjna
2.595,02 zł PLN
Cena jednostkowa
na
Z wliczonym podatkiem.
PRICE EXCL. VAT
- Worldwide shipping via trusted and reliable couriers.
- Huge savings against OEM parts.
- Need assistance? Contact our expert sales team.
Nie można załadować gotowości do odbioru
Key Information
- Rotation: Clockwise (looking from shaft end)
- 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
- SAE B 2 hole mounting flange
- Front pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
- Rear pump displacement: 23 cc/rev (23L/Min per 1000 rpm)
- Single 2” SAE flange inlet
- Front pump outlet: 1 1/16”-12 UNF threaded
- Rear pump outlet: 7/8”-14 UNF threaded
- Maximum working pressure on front pump: 275 bar
- Maximum working pressure on rear pump: 275 bar
- Max. Input shaft torque: 460 Nm
Replaces the following JCB part numbers
- 220/925586 - 333/C5234 - 333/G5392
Weight
- 26KG
Machine Fitment
-
PUMP 29/23 CCR MAIN HYDRAULIC 214e/3C 14 Centremount Economy "e" 9812/0010
