Parker Hannifin

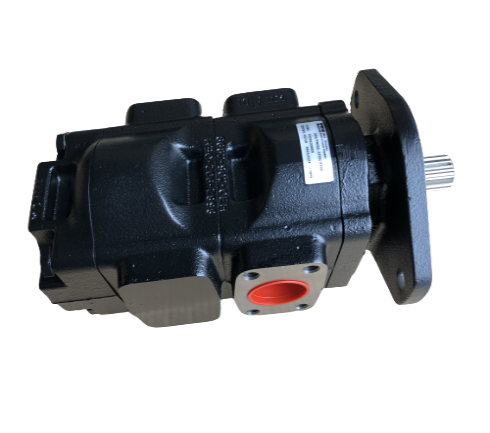

332/F9028 Genuine Parker / JCB 3CX Twin Hydraulic Pump 33 + 23 CC/REV

332/F9028 Genuine Parker / JCB 3CX Twin Hydraulic Pump 33 + 23 CC/REV

123 w magazynie

Cena regularna 3.222,50 zł PLN
Cena regularna Cena promocyjna 3.222,50 zł PLN
W promocji Wyprzedane
Z wliczonym podatkiem.

PRICE EXCL. VAT

Looking for a pump to fit a specific machine? Click here. Alternatively, enter your machine number or OEM part number into the search bar above.
  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.
Key Information
  • Rotation: Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
  • SAE B 2 hole mounting flange
  • Front pump displacement: 33 cc/rev (33L/Min per 1000 rpm)
  • Rear pump displacement: 23 cc/rev (23L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 7/8”-14 UNF threaded
  • Maximum working pressure on front pump: 275 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

  • 20/925578 - 20/925586 - 332/F9028

Weight

  • 26KG

Machine Fitment

  • PUMP 33/23 CCR MAIN HYDRAULIC 82 HP BUILDS 3CX 84hp 9812/0010
  • PUMP MAIN 33/23 CCR For Extra Dig Applications 3DX SUPER BSIII 9802/9850
  • PUMP MAIN 33/23 CCR For Extra Dig Applications 3DX SUPER BSIII 9802/9850
  • PUMP MAIN 33/23 CCR For Extra Dig Applications 3DX SUPER BSII INDIA HOME 9802/9850
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 33/23 CCR 3DX SUPER 9822/1015
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 33/23 CCR 3DX SUPER - SRILANKA 9822/1060
  • PUMPS GEAR DETAILS 33/23CCR 3CXD14L4CM TIER 4 9822/0835
  • PUMPS GEAR DETAILS 33/23CCR 3DX SUPER 9822/1015
  • PUMPS GEAR DETAILS 33/23CCR 3CXG14L4CM 9822/0935
  • PUMPS GEAR DETAILS 33/23CCR 3DX SUPER - SRILANKA 9822/1060
  • PUMPS GEAR DETAILS 33/23CCR 3DX 9822/0525
  • ENGINE TRANSMISSION Package 475/M1118 MISCELLANEOUS . 9802/1010
  • PUMP MAIN HYDRAULIC 3DX XTRA BSII 9822/0110
  • PUMP MAIN HYDRAULIC 3DX XTRA BSIII 9822/0110
  • PUMP MAIN HYDRAULIC 3DX XTRA BSIII 9822/0110
