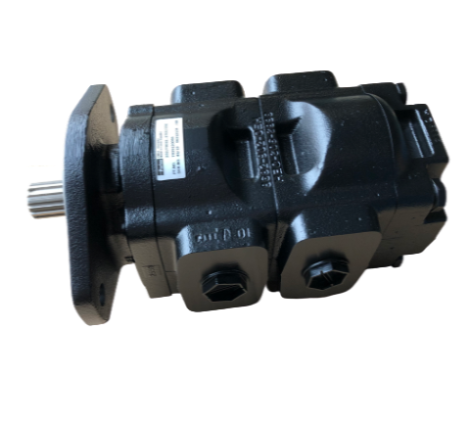

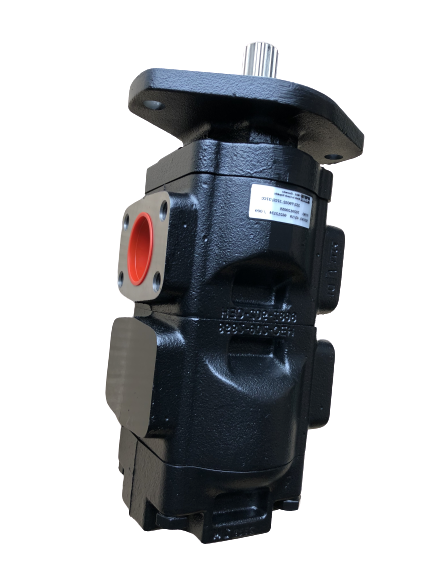

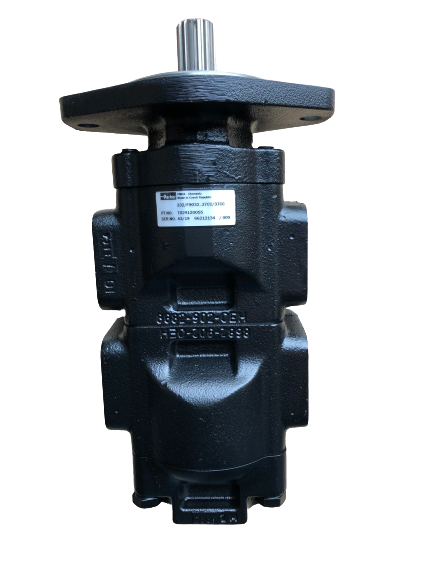

332/F9032 Genuine Parker / JCB 3CX Twin Hydraulic Pump 37 + 37 CC/REV - Unwin Hydraulic Engineering
332/F9032 Genuine Parker / JCB 3CX Twin Hydraulic Pump 37 + 37 CC/REV - Unwin Hydraulic Engineering
332/F9032 Genuine Parker / JCB 3CX Twin Hydraulic Pump 37 + 37 CC/REV - Unwin Hydraulic Engineering
Parker Hannifin

20/925744 Genuine Parker / JCB 3CX Twin Hydraulic Pump 7029120052 7029120055

€870,00 ex VAT €870,00 inc VAT€870,00 inc VAT €870,00 ex VAT

In stock

Collection from our Derbyshire HQ by arrangement

Need 10+ or a bulk price? Request a quote

Delivery price

Live courier prices — the same as you'll see at checkout.

  • Order by 1pm for same-day dispatch (subject to stock availability)
  • Up to 50% saving against OEM parts
  • Technical support from our hydraulic engineers
Not sure it's the right part?

Our engineers will check it fits before you order.

01283 817 920
Key Information
  • Rotation: Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
  • SAE B 2 hole mounting flange
  • Front pump displacement: 37 cc/rev (37L/Min per 1000 rpm)
  • Rear pump displacement: 37 cc/rev (37L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 1 1/16”-12 UNF threaded
  • Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

  • 332/F9032  7029120052 7029120055 20/925744

Weight

  • 26KG

Machine Fitment

  • PUMP 37/37 CCR MAIN HYDRAULIC 100HP, OPTIONAL PCH BUILDS 3CXS-PC Precision Control (Servo) 9812/0010
  • PUMP 37/37 CCR MAIN HYDRAULIC 100HP, OPTIONAL PCH BUILDS 4CX-PC Precision Control (Servo) 9812/0010
  • PUMP 37/37 CCR MAIN HYDRAULIC 100HP, OPTIONAL PCH BUILDS 3CX-T-PC Precision Control (Servo) 9812/001
