Parker Hannifin

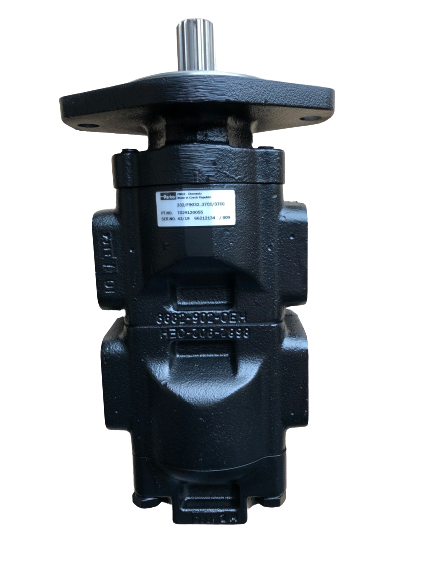

332/F9032 Genuine Parker / JCB 3CX Twin Hydraulic Pump 37 + 37 CC/REV

332/F9032 Genuine Parker / JCB 3CX Twin Hydraulic Pump 37 + 37 CC/REV

18 w magazynie

Cena regularna 3.874,96 zł PLN
Cena regularna Cena promocyjna 3.874,96 zł PLN
W promocji Wyprzedane
Z wliczonym podatkiem.

PRICE EXCL. VAT

Looking for a pump to fit a specific machine? Click here. Alternatively, enter your machine number or OEM part number into the search bar above.
  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.
Key Information
  • Rotation: Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
  • SAE B 2 hole mounting flange
  • Front pump displacement: 37 cc/rev (37L/Min per 1000 rpm)
  • Rear pump displacement: 37 cc/rev (37L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 1 1/16”-12 UNF threaded
  • Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

  • 332/F9032  7029120052 7029120055 20/925744

Weight

  • 26KG

Machine Fitment

  • PUMP 37/37 CCR MAIN HYDRAULIC 100HP, OPTIONAL PCH BUILDS 3CXS-PC Precision Control (Servo) 9812/0010
  • PUMP 37/37 CCR MAIN HYDRAULIC 100HP, OPTIONAL PCH BUILDS 4CX-PC Precision Control (Servo) 9812/0010
  • PUMP 37/37 CCR MAIN HYDRAULIC 100HP, OPTIONAL PCH BUILDS 3CX-T-PC Precision Control (Servo) 9812/001
