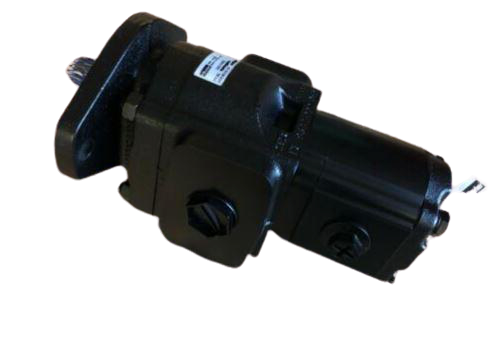

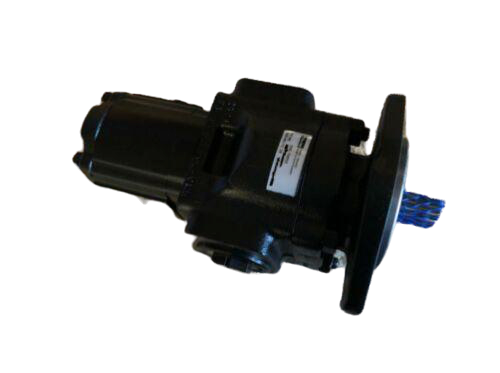

332/T4833 Genuine Parker / JCB 524 /527 Twin Hydraulic Pump 37 + 16 CC/REV - Unwin Hydraulic Engineering
332/T4833 Genuine Parker / JCB 524 /527 Twin Hydraulic Pump 37 + 16 CC/REV - Unwin Hydraulic Engineering
Parker Hannifin

332/T4833 Genuine Parker / JCB 524 /527 Twin Hydraulic Pump 7029521014

€1.039,73 ex VAT €1.039,73 inc VAT€1.039,73 inc VAT €1.039,73 ex VAT

Only 3 left in stock

Collection from our Derbyshire HQ by arrangement

Need 10+ or a bulk price? Request a quote

Delivery price

Live courier prices — the same as you'll see at checkout.

  • Order by 1pm for same-day dispatch (subject to stock availability)
  • Up to 50% saving against OEM parts
  • Technical support from our hydraulic engineers
Not sure it's the right part?

Our engineers will check it fits before you order.

01283 817 920

Key Information

  • Rotation: Clockwise (looking from shaft end)
  • 7/8” Diameter 13T SAE B splined shaft
  • SAE B 2 hole mounting flange
  • Front Pump displacement: 37 cc/rev (37L/Min per 1000 rpm)
  • Rear Pump displacement: 16 cc/rev (16L/Min per 1000 rpm)
  • 1 7/8" UNF threaded inlet
  • Front pump 1 1/16" UNF threaded outlet
  • Rear pump 7/8" UNF threaded outlet

Replaces the following JCB part numbers

  • 332/T4833

Weight

  • 16KG

Machine Fitment

  • TOW HITCH HYDRAULIC CIRCUIT 527-55 TIER 3 9812/7560
  • TOW HITCH HYDRAULIC CIRCUIT 524-50 TIER 3 9812/7560
  • TOW HITCH MANUAL CIRCUIT 524-50 TIER 3 9812/7560
  • TOW HITCH MANUAL CIRCUIT 527-55 TIER 3 9812/7560
  • PUMP MAIN HYDRAULIC 527-55 TIER 3 9812/7560
  • PUMP MAIN HYDRAULIC 524-50 TIER 3 9812/7560
  • PUMP,GEAR 527-55 TIER 3 9812/7560
  • PUMP,GEAR 524-50 TIER 3 9812/7560
  • PUMP/MOTOR INSTALLATION ASSEMBLIES PUMPS GEAR 2 STAGE, 37 AND 16CC, 524-50, 527-55 527-55 4WS 9822/0425
  • PUMP/MOTOR INSTALLATION ASSEMBLIES PUMPS GEAR 2 STAGE, 37 AND 16CC, 524-50, 527-55 524-50 4WS 9822/0425
