Only 2 left in stock
Collection from our Derbyshire HQ by arrangement
Delivery price
Live courier prices — the same as you'll see at checkout. Import duties and local taxes may be payable on delivery.
- Order by 1pm for same-day dispatch (subject to stock availability)
- Up to 50% saving against OEM parts
- Technical support from our hydraulic engineers
Our engineers will check it fits before you order.

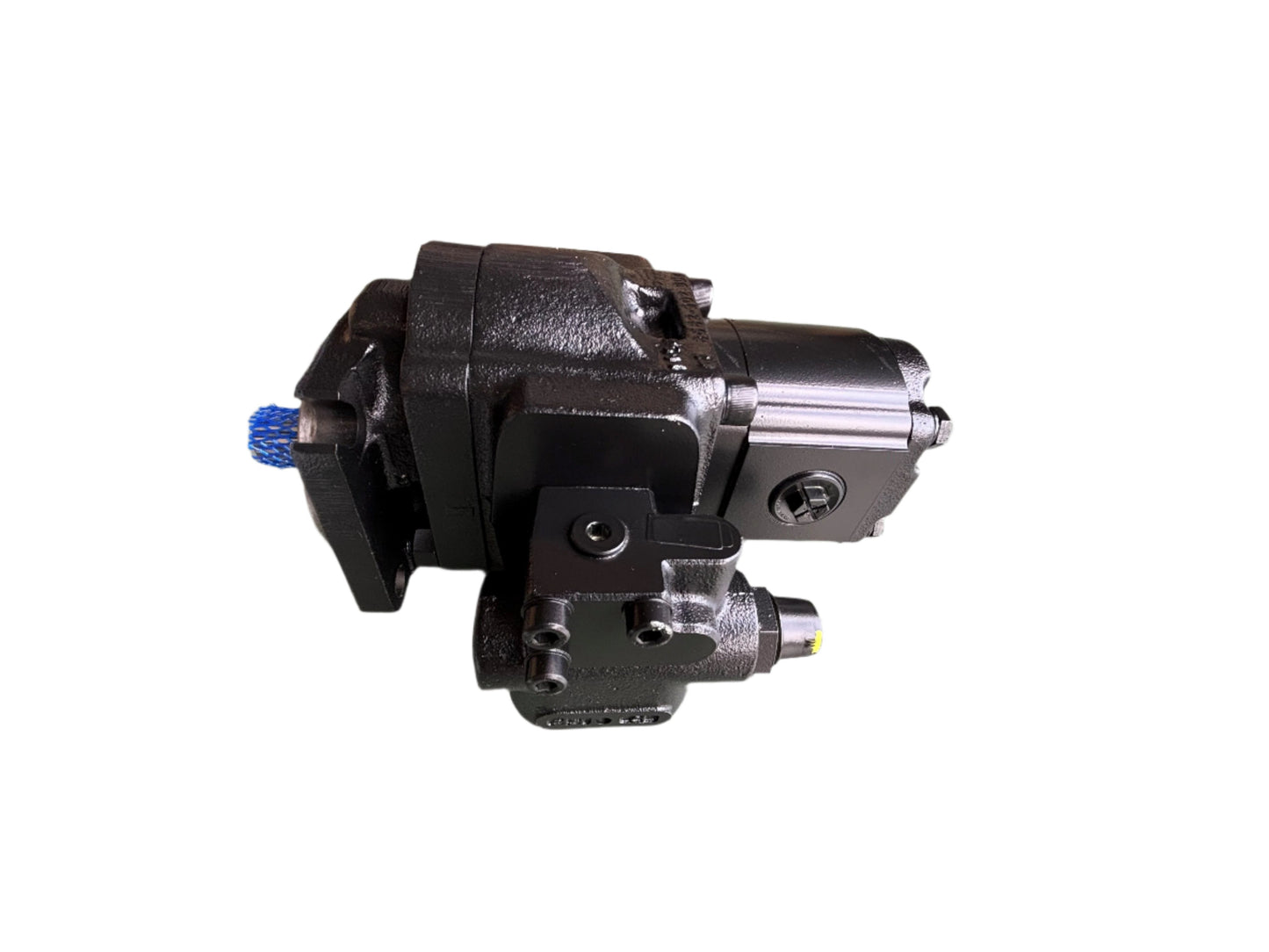

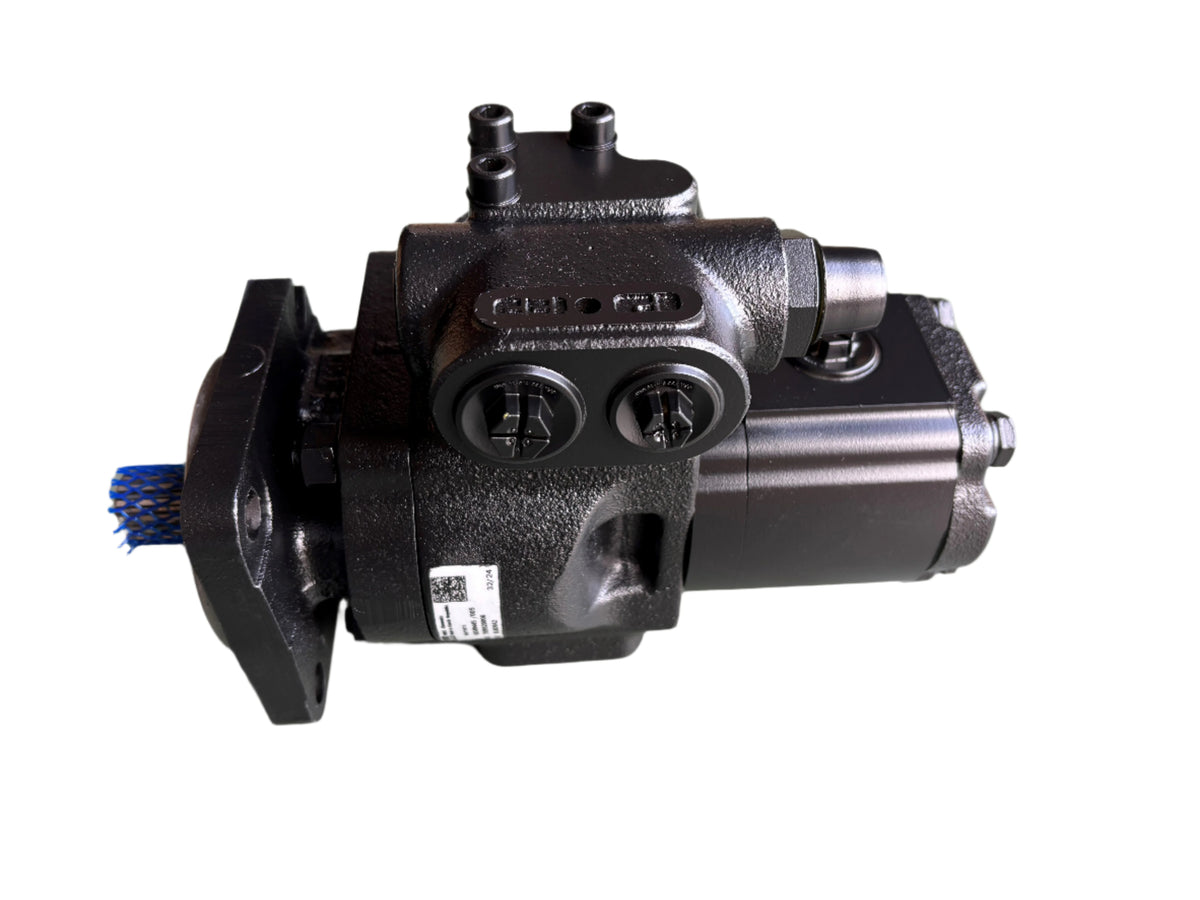

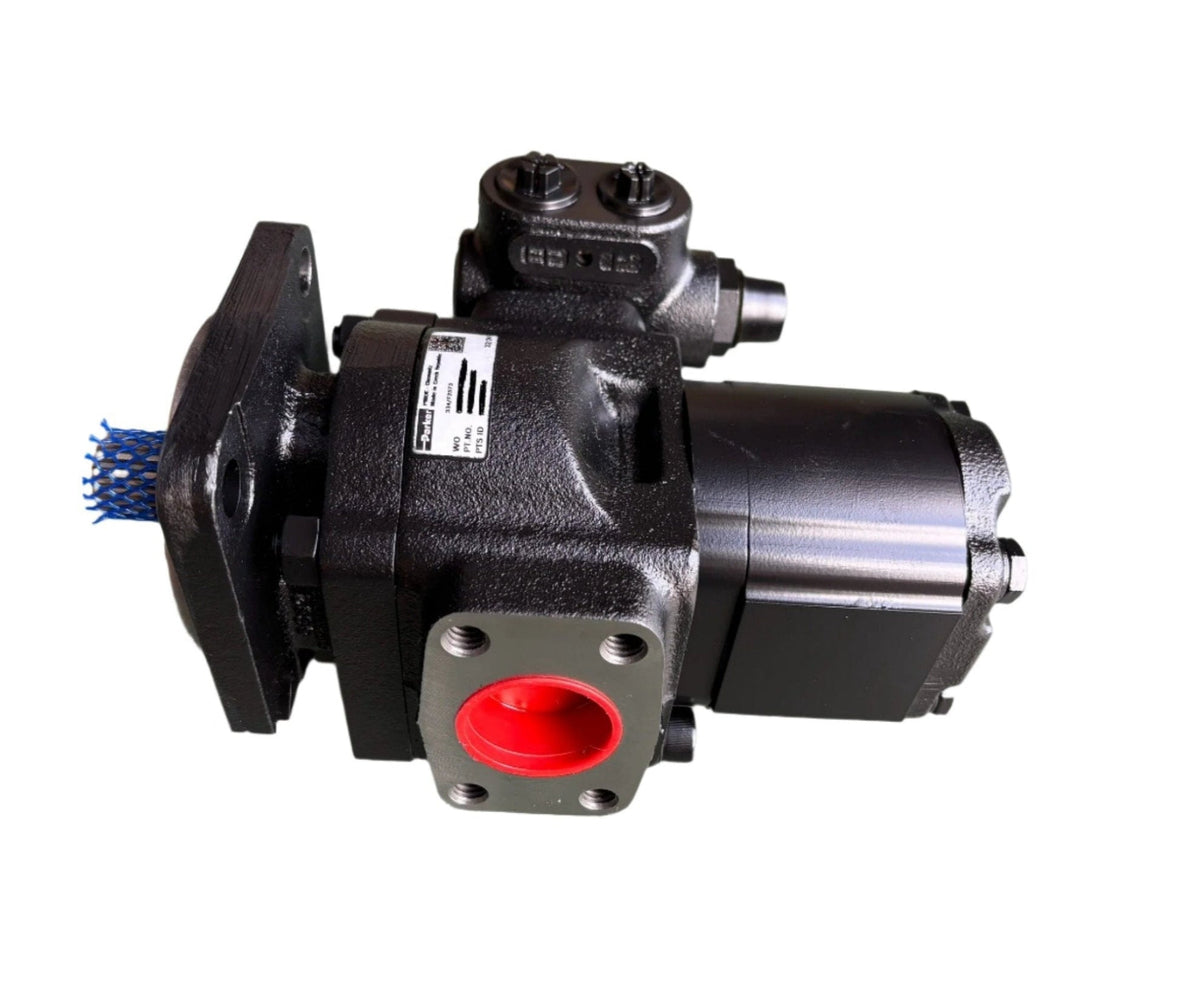

- Rotation: Counter-Clockwise (looking from shaft end)
- 1” Diameter 15 tooth SAE spline16/32 Pitch
- SAE B 4 hole mounting flange - 2 holes with cutout
- Front pump displacement: 36 cc/rev (33L/Min per 1000 rpm)
- Rear pump displacement: 16 cc/rev (16L/Min per 1000 rpm)
- Combined 2” SAE flange inlet
- Maximum working pressure on front pump: 250 bar
- Maximum working pressure on rear pump: 275 bar
- Max. Input shaft torque: 325 Nm
- Comes complete with LS priority valve
Replaces the following JCB part numbers
- 334/F2573
Weight
- 18KG
Machine Fitment
PUMP/MOTOR INSTALLATION ASSEMBLIES 80 L/Min 2 STG 14/06/2015 526-56 9822/0090
PUMP/MOTOR INSTALLATION ASSEMBLIES 2 STAGE 531-70WM 9822/0090
PUMP/MOTOR INSTALLATION ASSEMBLIES 2 STAGE 541-70WM ALL 541-70 MODELS 9822/0090
PUMP/MOTOR INSTALLATION ASSEMBLIES 2 STAGE 536-70AG+ 9822/0090
PUMP/MOTOR INSTALLATION ASSEMBLIES PUMP 2 STAGE, 80L/MIN 15/06/2015 526-56 9822/0090
Full specifications are available on request.
Need a quantity price or a configured unit?
Send us your requirements and an engineer will reply with a firm quote.
