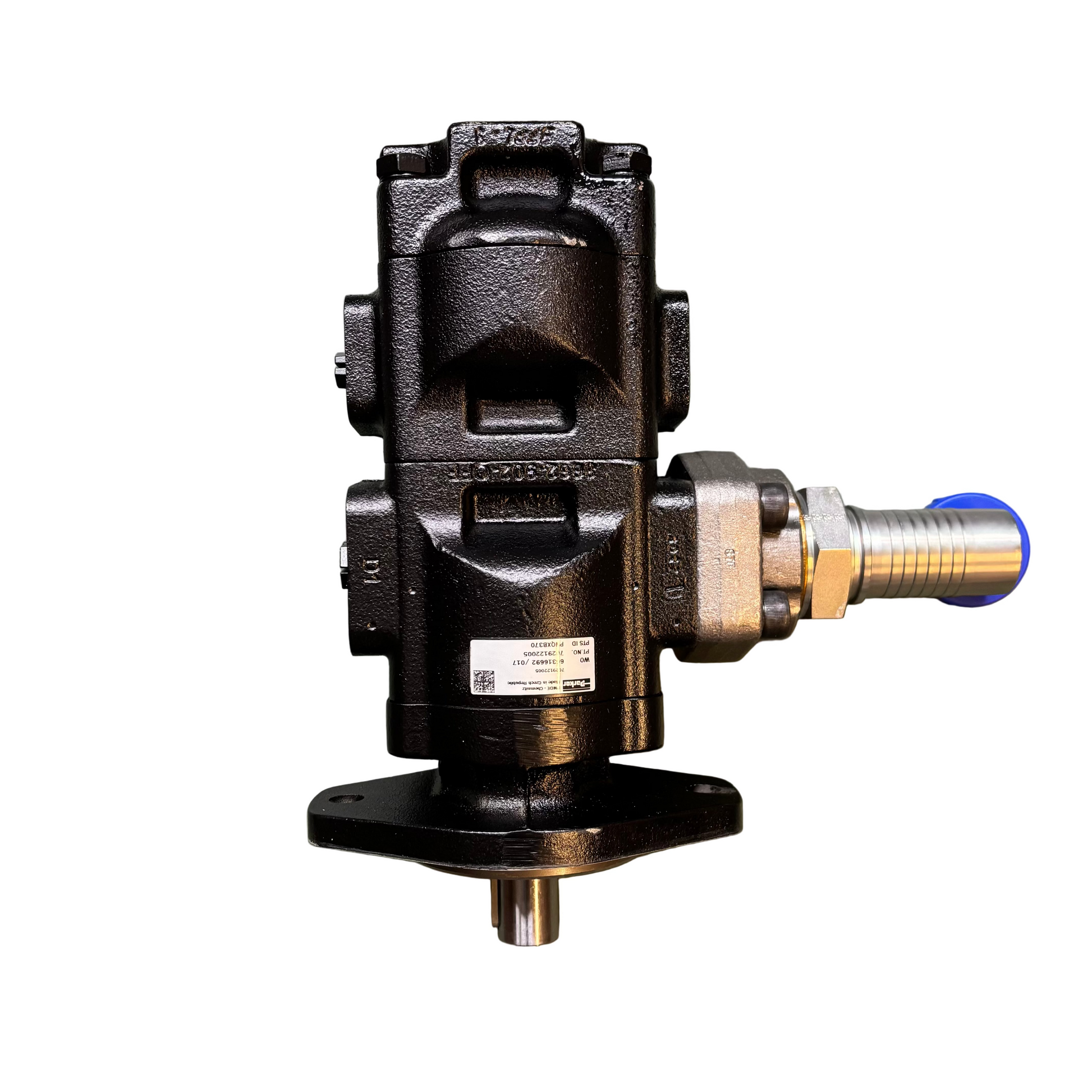

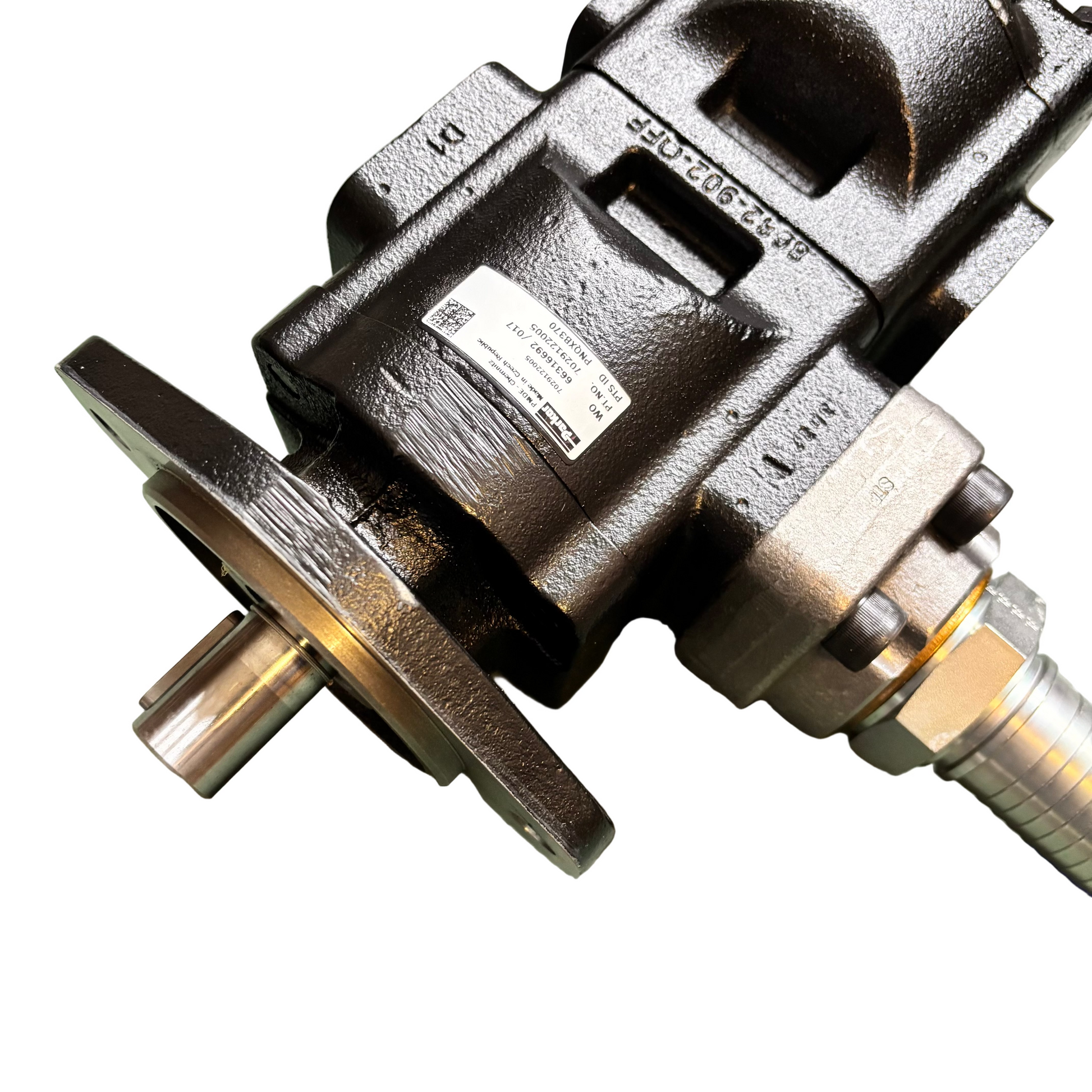

919/27100 KIT JCB 3CX Black Cab Twin Hydraulic Pump
919/27100 KIT JCB 3CX Black Cab Twin Hydraulic Pump
20/903200KIT Genuine Parker/JCB 3CX Twin Hydraulic Pump 41 + 29 CC/REV - Unwin Hydraulic Engineering
20/903200KIT Genuine Parker/JCB 3CX Twin Hydraulic Pump 41 + 29 CC/REV - Unwin Hydraulic Engineering
Parker Hannifin

919/27100 KIT JCB 3CX Black Cab Twin Hydraulic Pump

€1.681,34 ex VAT €1.681,34 inc VAT€1.681,34 inc VAT €1.681,34 ex VAT

Only 5 left in stock

Collection from our Derbyshire HQ by arrangement

Need 10+ or a bulk price? Request a quote

Delivery price

Live courier prices — the same as you'll see at checkout.

  • Order by 1pm for same-day dispatch (subject to stock availability)
  • Up to 50% saving against OEM parts
  • Technical support from our hydraulic engineers
Not sure it's the right part?

Our engineers will check it fits before you order.

01283 817 920
Kit to replace old JCB Black cab David Brown/Hamworthy pumps  919/27100 and 919/72400

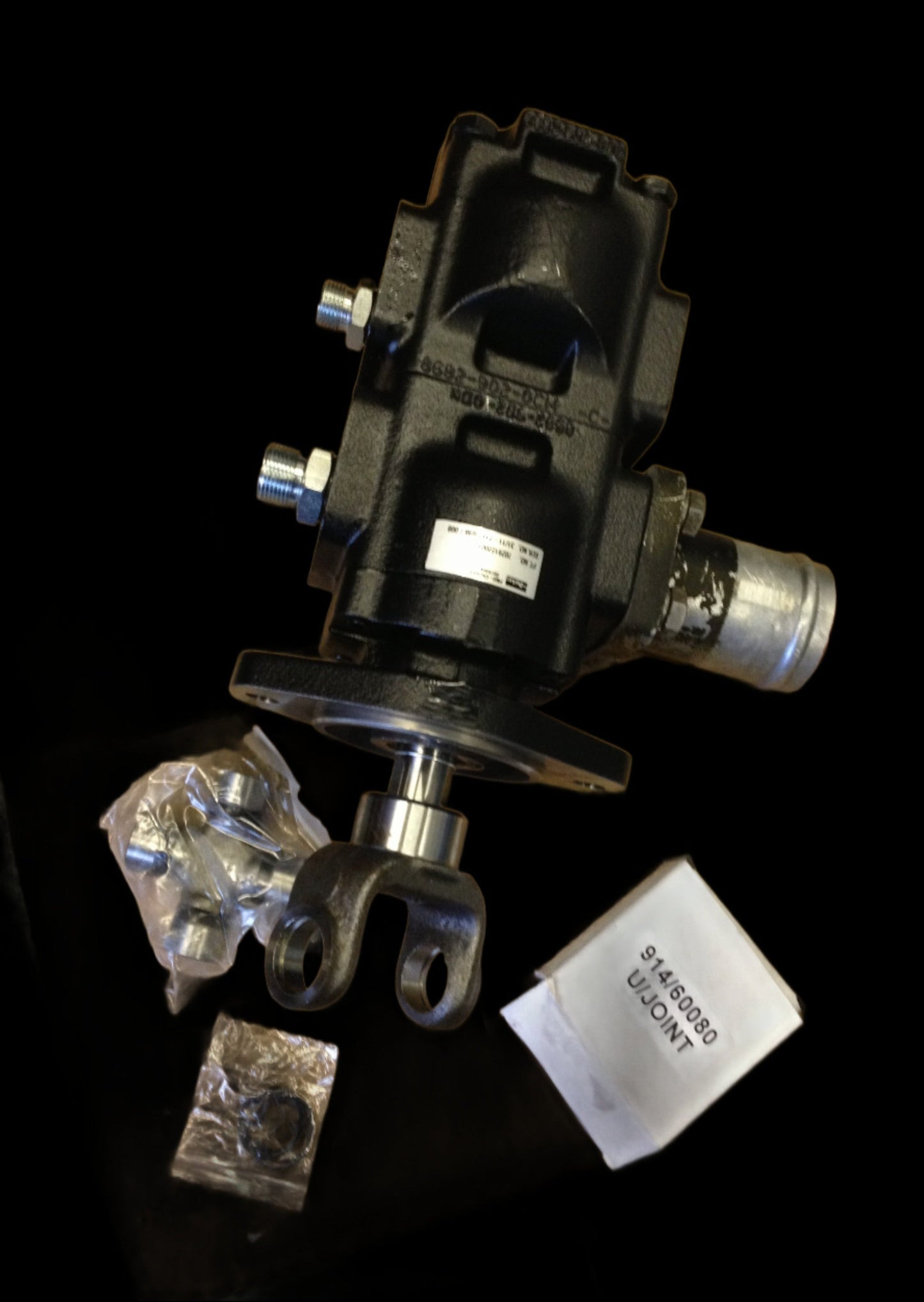

Kit Contents ;
1 x Universal Joint Cross Piece JCB 914/60080
1 x 1" Coupling Half  JCB 914/70045
3 x UNF - BSP Fittings ( 01318, 01319, 01324 with O rings )
1 x 2" Suction flange - 1 1/2" BSP Female thread O ring included (BFX-306-G24-W1)
1 x 1 1/2" BSP Male - 1 1/2" Hose Tail (HCS-38-AGR-24-M-W66A)

This Kit replaces the older Blackcab Hamworthy/David Brown hydraulic pump for the latest Parker pump  - it is noticeably smoother and quieter running and gives considerable efficiency benefits for the operator.



Key Information
  • Rotation: Counter-Clockwise (looking from shaft end)
  • 1” Diameter parallel keyed shaft
  • SAE B 2 hole mounting flange
  • Front pump displacement: 41 cc/rev (41L/Min per 1000 rpm)
  • Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
  • Combined 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 7/8”-14 UNF threaded
  • Maximum working pressure on front pump: 250bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 325 Nm

Weight

  • 28KG

Replaces the following JCB part numbers

  •   919/27100    919/72400
