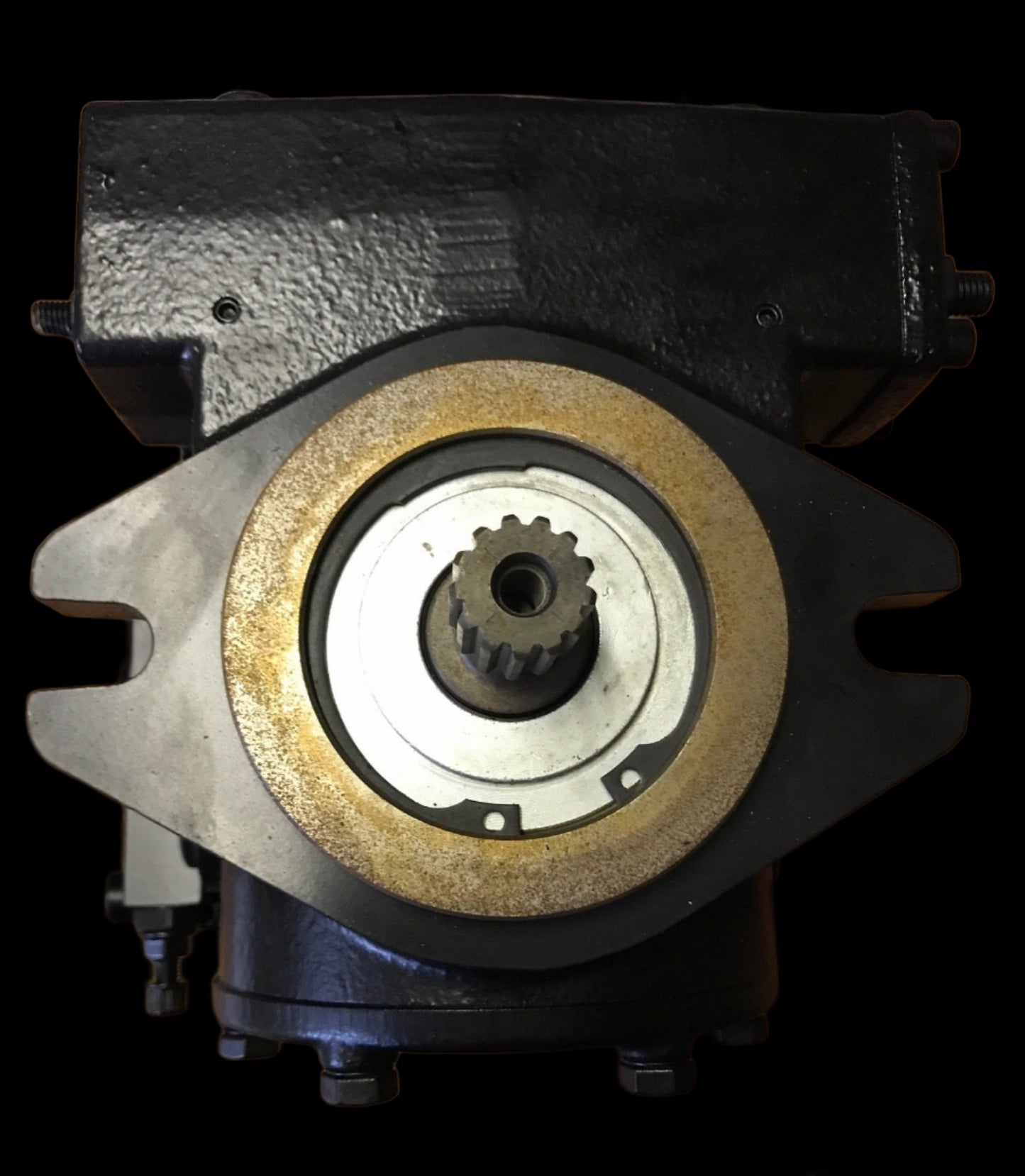

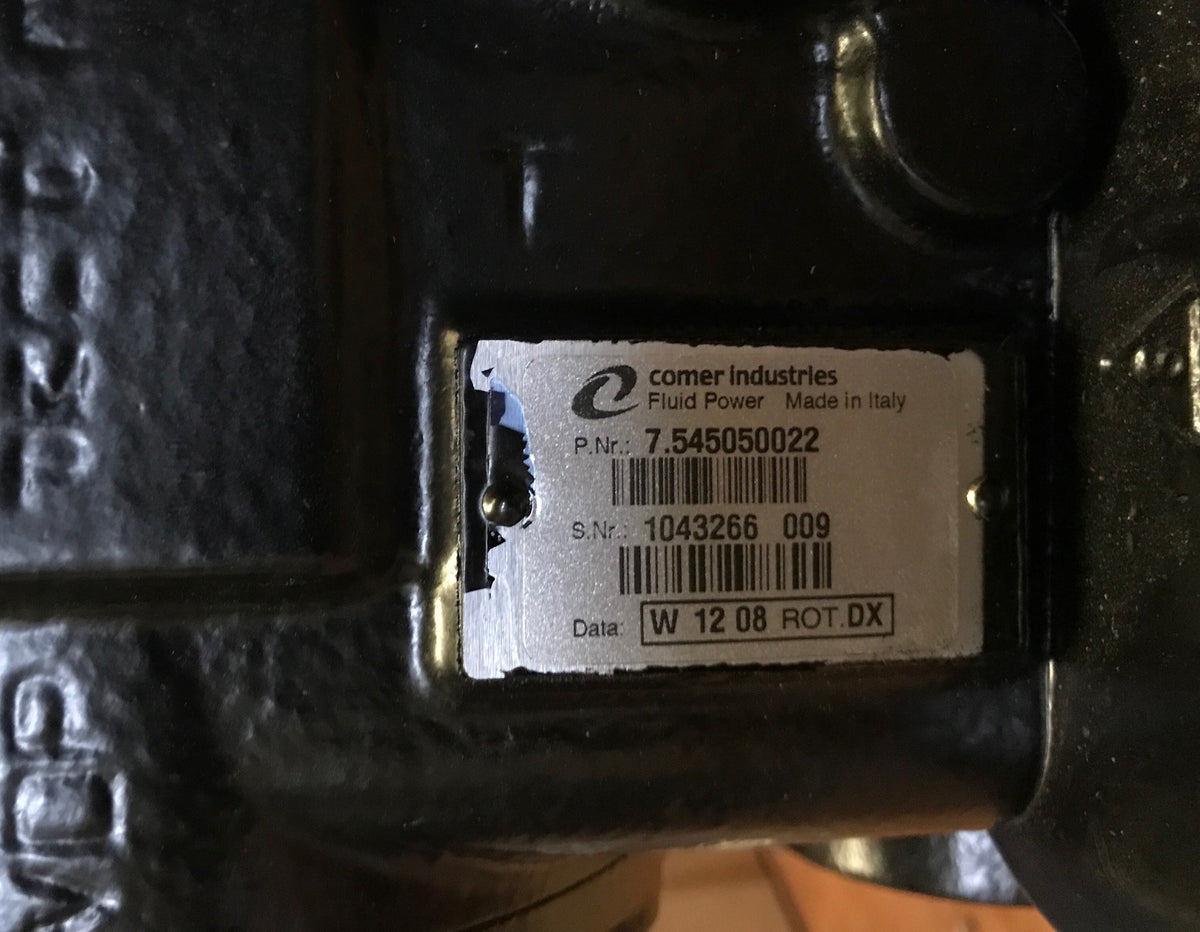

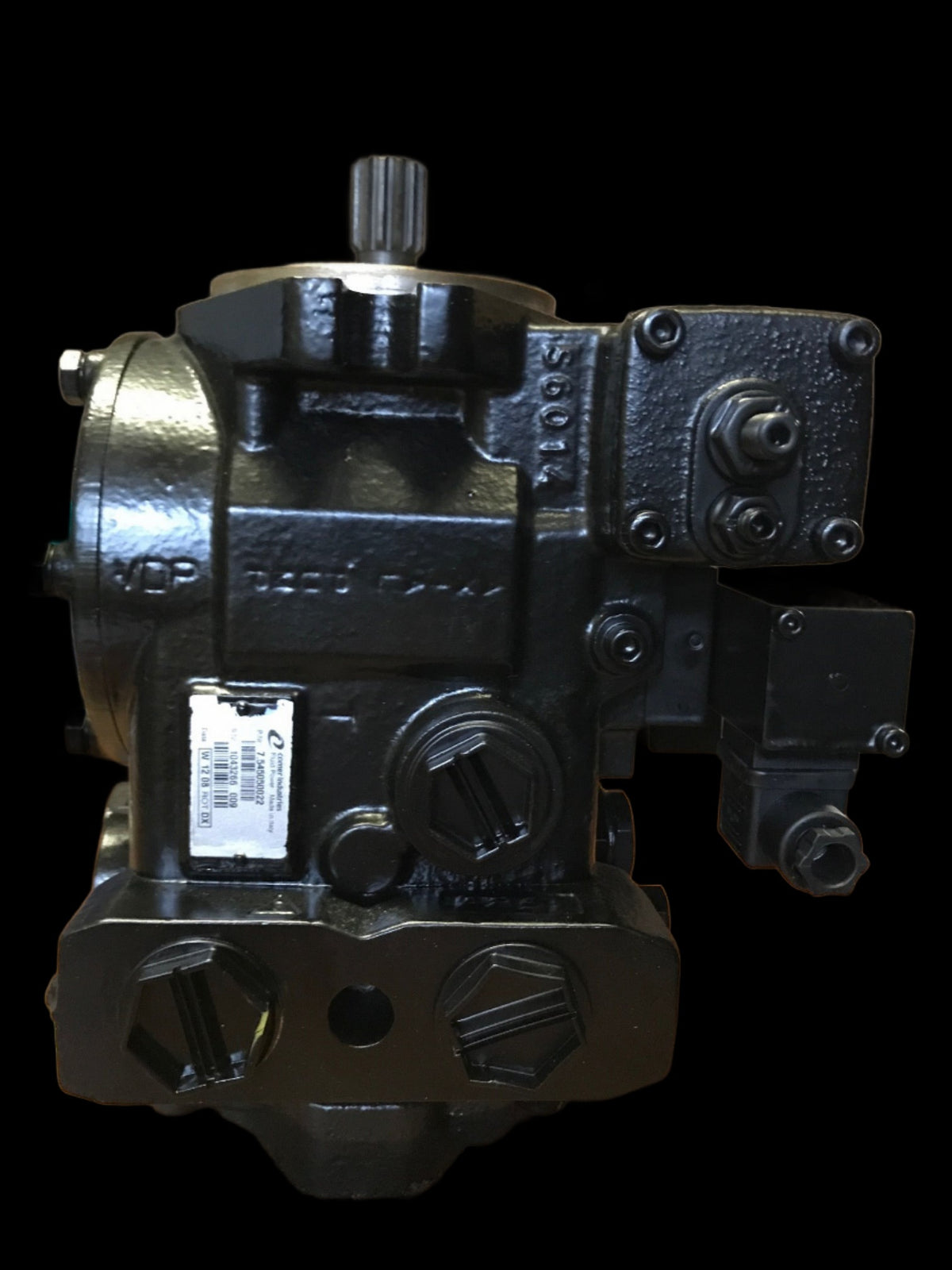

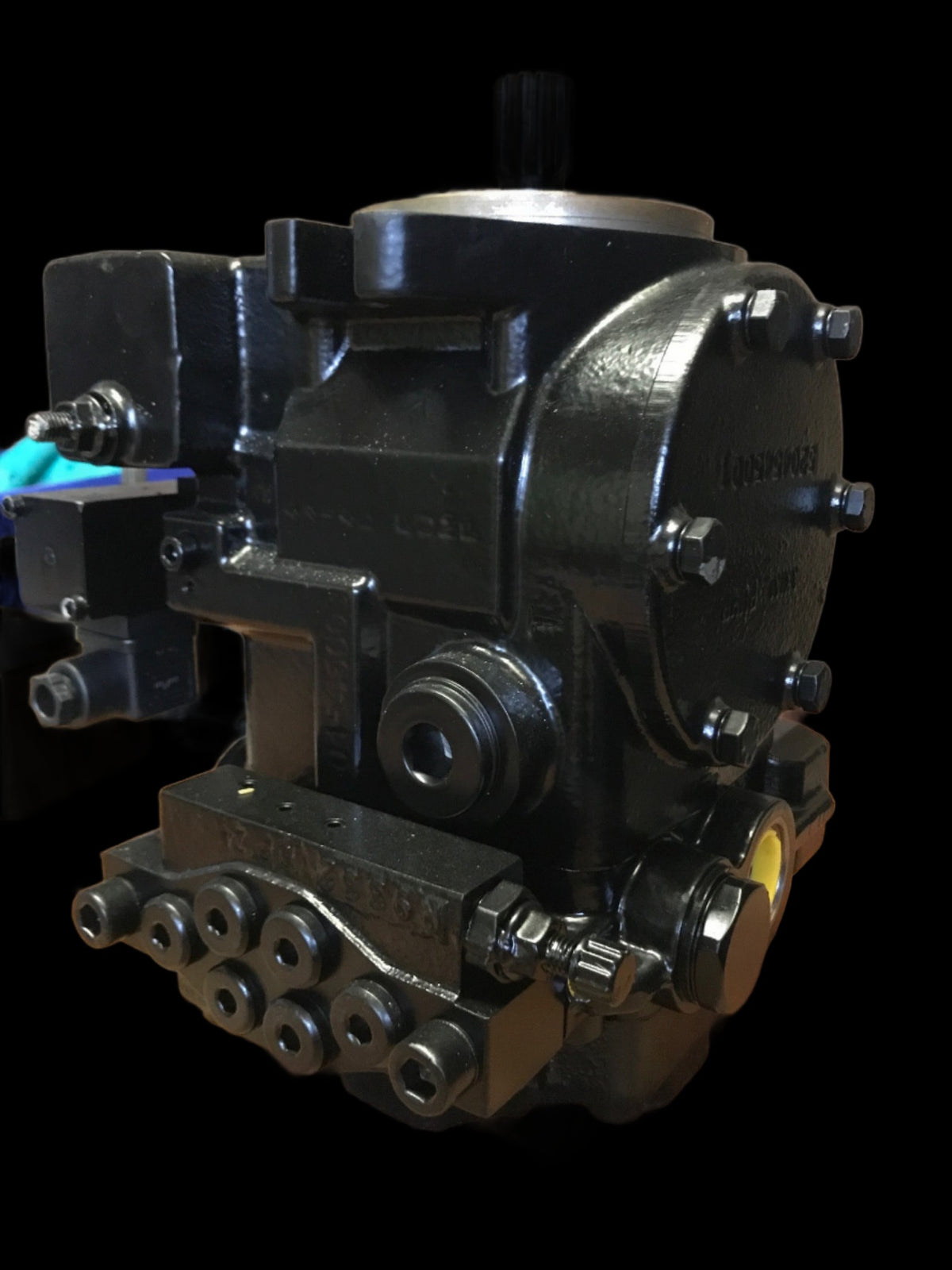

COMER INDUSTRIES V450/50S3P102827R2611AA00LE PUMP. PART NUMBER -7545050022
12V Proportional Elec. control 250Bar.
Poclain ref PM45-52 Hydraulic pump
SPECIFICATIONS
POCLAIN REF PM45-52-S3-P12-10-28-27-R26-11-A0000.
REF V450/50S3P102827R2611AA00LE
CLOCKWISE ROTATION. 700 - 3400RPM OPERATING RANGE
COULD BE USED FOR MANY CLOSED LOOP HYDRAULIC APPLICATIONS THAT REQUIRE 20-60HP SUCH AS CONVEYOR DRIVES , MARINE PROPELLOR DRIVES
ETC ETC
50cc/rev VARIABLE FLOW IN BOTH DIRECTIONS (A-B OR B-A)
CONTROL 12V PROPORTIONAL SOLENOID 0-50cc/rev
MAX CONT.PRESSURE 250 BAR. PEAK PRESSURE 350BAR
MOUNTING FLANGE SAE B 2 HOLE.
SHAFT 7/8" 13T SAE B. MAX TORQUE 220Nm
REAR THRU DRIVE SAE A.
Full specifications are available on request.
